Removing and Replacing Honda Odyssey Stereo and Speakers
Honda Odyssey Car Stereo Removal and Replacement 1.1) Set parking brake and shift to low gear. 2.1) Gently pry panel behind gear shift from dash releasing clips. All clips release with pressure. 3.1) Work you way across top of car stereo and AC dash trim panel releasing clips. 4.1) Pull trim panel with AC controls slightly from dash. 5.1) Reach behind trim panel, release triggers on connectors at AC controls to disconnect. 6.1) Release triggers on connectors at Air Bag and AC control panel switches to disconnect. 7.1) Reach below panel to opposite side, release trigger on connector to disconnect. 8.1) Remove trim panel with AC controls from behind gear shift and set to side. 9.1) Remove two screws right side of car stereo from mounting bracket. 10.1) Remove two screws left side of car stereo from mounting bracket. 11.1) Pull car stereo from dash. 12.1) Remove antenna and release trigger on connector to disconnect.
	Honda Odyssey Wire Color Codes Factory Wire Harness Codes Below
	Wire Color Codes and Hook Up Factory Connector Codes Below
	Radio CodE
	Speaker Phasing Installing Aftermarket Speakers and Proper Hook-up
	NO AUDIO With aftermarket radio installation?
	DIY Repair Erratic Volume Control

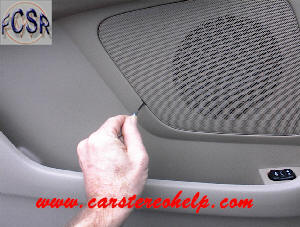

How to Remove and Replace Honda Odyssey Front Speaker Honda Odyssey Front Speaker Removal and Install 1.1) With flat head screw driver, insert into slot on back of speaker grill. 1.2) Gently pry back edge of speaker grill from door panel releasing clips. All clips release with pressure. 2.1) Grasp back edge of speaker grill. 3.1) Pull speaker grill toward back of door panel releasing two speaker grill hooks from door panel. 4.1) Remove screws securing speaker to door panel and remove. NOTE - for determining aftermarket installation polarity of speaker wires for correct hook up see Speaker Phasing above.     How to Remove and Replace Honda Odyssey Rear Speaker Honda Odyssey Rear Speaker Removal and Install 1.1) Gently pry outside edge of speaker grill from panel releasing clips. All clips release with pressure. 2.1) Grasp outside edge of speaker grill. 3.1) Swing speaker grill toward side of car releasing two hooks on speaker grill from behind side panel. 4.1) Remove screws securing speaker to side panel and remove. NOTE - for determining aftermarket installation polarity of speaker wires for correct hook up see Speaker Phasing above.
Honda Car Audio - Wire Diagrams - Wire Color Codes Factory Wire Harness Codes     DO NOT CUT FACTORY WIRE HARNESS     Aftermarket stereo installation? Why purchase the aftermarket wire harness? Installation is easier, no guess work with wire color codes and a Headache Saver! Factory wire colors codes are not universal. See Aftermarket Videos above. We discourage cutting the factory wire harness. This section aids in troubleshooting and determining wire color codes, phasing for speaker hook up, locating power wires for installing external devices and add-ons.     Accord '86-97 Civic '86-98 CR-V '97-98 CRX '86-91 Odyssey '95-98 Prelude '86-98 Battery +12 volts constant White/Yellow Stripe or White/Blue Stripe Accessory +12 volts switch Yellow/Red Stripe Ground Black Illumination Red Dimmer Red/Black Stripe Power Antenna Yellow/White Stripe Left Front Speaker (+) Blue/Green Stripe Left Front Speaker (-) Gray/Black Stripe Right Front Speaker (+) Red/Green Stripe Right Front Speaker (-) Brown/Black Stripe Left Rear Speaker (+) Blue/Yellow Stripe Left Rear Speaker (-) Gray/White Stripe Right Rear Speaker (+) Red/Yellow Stripe Right Rear Speaker (-) Brown/White Stripe     Accord '98-06 Civic '99-06 CR-V '99-06 Element '03-06 Insight '01-06 Odyssey '99-06 Pilot '03-06 Prelude '99-01 S2000 '00-06 Battery +12 volts constant White/Green Stripe Accessory +12 volts switch White/Red Stripe or Orange Ground Black Illumination Red Dimmer Red/Black Stripe Power Antenna Yellow/White Stripe Left Front Speaker (+) Blue/Green Stripe Left Front Speaker (-) Gray/Black Stripe Right Front Speaker (+) Red/Green Stripe Right Front Speaker (-) Brown/Black Stripe Left Rear Speaker (+) Blue/Yellow Stripe Left Rear Speaker (-) Gray/White Stripe Right Rear Speaker (+) Red/Yellow Stripe Right Rear Speaker (-) Brown/White Stripe     Honda Wire Harness Code (Pin side of factory harness) Passport 1996-2000     Diagrams NOT ACCURATE for 100% of vehicles.
